Dit type cilinder wordt zeer veel toegepast vanwege de eenvoudige opbouw en daardoor lage prijs. Bevestigingen kunnen aan de bodem en/of stang gelast worden. Uiteraard kan dit door Robucon uitgevoerd worden, evenals speciale uitvoeringen (zie foto) en afwijkende slaglengten. Bel ons, of mail ons via mail@robucon.nl voor advies, ook leverbaar in volledig RVS.
Zie ook de volgende link in onze weshop klik hier
Onderstaande cilinders hebben de volgende opbouw:
* hard-chroom zuigerstang
* stalen buis
* Ingeschroefde kop
* gelaste bodem
* reviseerbaar
* p max. 250 bar, hogere drukken op aanvraag
|

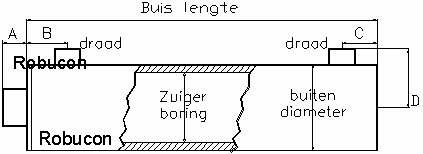

Zuiger diameter |
Stang |
Slag |
Buis |
Buiten |
A |
B |
C |
D |
Draad |
BESTEL NUMMER |
|
40 40 40 40 40 40 40 40 40 40 40 40 40 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 60 60 60 60 60 60 60 60 70 70 70 70 70 70 70 70 70 70 80 80 80 90 90 100 |
25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 35 35 35 35 35 35 35 35 35 35 35 35 35 40 40 40 40 40 50 50 50 60 60 60 |
100 150 200 250 300 400 450 500 600 800 1000 1250 1400 150 200 150 200 250 300 350 400 450 500 550 600 800 1000 1250 1400 1500 250 300 350 400 500 600 800 1000 250 500 700 800 1000 500 700 800 1000 1400 250 500 800 500 800 800 |
208 258 308 358 408 508 558 608 708 908 1108 1358 1508 268 318 268 318 368 418 468 518 568 618 668 718 918 1118 1368 1518 1618 387 437 487 537 637 737 937 1137 387 637 837 937 1137 637 837 937 1137 1537 405 655 955 660 960 985 |
50 50 50 50 50 50 50 50 50 50 50 50 50 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 70 70 70 70 70 70 70 70 80 80 80 80 80 80 80 80 80 80 90 90 90 102 102 115 |
±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±22 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±23 ±25 ±25 ±25 ±25 ±25 ±25 |
44 44 44 44 44 44 44 44 44 44 44 44 44 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 62 62 62 58 58 60 |
23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 27 27 27 27 27 27 |
42 42 42 42 42 42 42 42 42 42 42 42 42 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 47 52 52 52 52 52 52 52 52 57 57 57 57 57 57 57 57 57 57 62 62 62 70 70 78 |
G1/4" G1/4" G1/4" G1/4" G1/4" G1/4" G1/4" G1/4" G1/4" G1/4" G1/4" G1/4" G1/4" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G3/8" G1/2" G1/2" G1/2" G1/2" G1/2" G1/2" |
CIL-40/25/100S CIL-40/25/150S CIL-40/25/200S CIL-40/25/250S CIL-40/25/300S CIL-40/25/400S CIL-40/25/450S CIL-40/25/500S CIL-40/25/600S CIL-40/25/800S CIL-40/25/1000S CIL-40/25/1250S CIL-40/25/1400S CIL-50/25/150S CIL-50/25/200S CIL-50/30/150S CIL-50/30/200S CIL-50/30/250S CIL-50/30/300S CIL-50/30/350S CIL-50/30/400S CIL-50/30/450S CIL-50/30/500S CIL-50/30/550S CIL-50/30/600S CIL-50/30/800S CIL-50/30/1000S CIL-50/30/1250S CIL-50/30/1400S CIL-50/30/1500S CIL-60/35/250S CIL-60/35/300S CIL-60/35/350S CIL-60/35/400S CIL-60/35/500S CIL-60/35/600S CIL-60/35/800S CIL-60/35/1000S CIL-70/35/250S CIL-70/35/500S CIL-70/35/700S CIL-70/35/800S CIL-70/35/1000S CIL-70/40/500S CIL-70/40/700S CIL-70/40/800S CIL-70/40/1000S CIL-70/40/1400S CIL-80/50/250S CIL-80/50/500S CIL-80/50/800S CIL-90/60/500S CIL-90/60/800S CIL-100/60/800S |
